Industrial Robot Battery

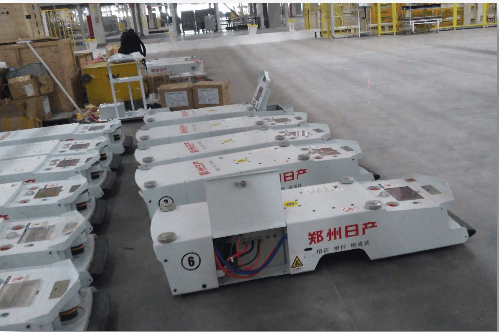

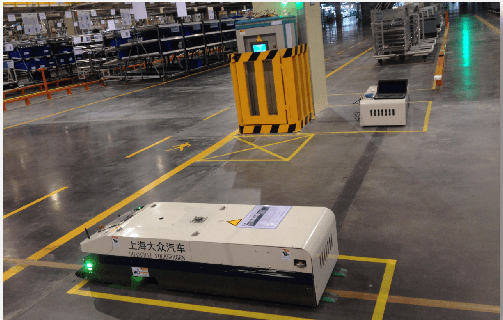

Provide core power battery and charger for AGV robots in factories, warehousing and logistics, tobacco, port, airport; AGV automatic porter is intelligent material handling equipment, it has the advantages of high automation, flexible application, safety and reliability, unmanned operation, simple construction and convenient maintenance, so it is widely used in tire, clothing, 3C, home appliances, automobile manufacturing, tobacco, machinery and other industries. At the same time, the logistics AGV automatic handling truck is also widely used in the flexible production system (FMS), the flexible handling system and the automated warehouse. It is the key equipment of modern logistics system, which is of great significance to improve the degree of production automation and improve the production efficiency.
Provide core power battery and charger for AGV robots in factories, warehousing and logistics, tobacco, port, airport; AGV automatic porter is intelligent material handling equipment, it has the advantages of high automation, flexible application, safety and reliability, unmanned operation, simple construction and convenient maintenance, so it is widely used in tire, clothing, 3C, home appliances, automobile manufacturing, tobacco, machinery and other industries. At the same time, the logistics AGV automatic handling truck is also widely used in the flexible production system (FMS), the flexible handling system and the automated warehouse. It is the key equipment of modern logistics system, which is of great significance to improve the degree of production automation and improve the production efficiency.
Features
High safety, lithium iron phosphate / ternary material
Industrial standard DIO / AIO, providing convenient interaction channels
Integrated Industrial Communication Bus to Product (C A N/MODBUS)
Connect the energy management parameters to the core system
Battery high cycle life / high IP protection level
Fast charging, high current discharge, to deal with starting, lifting and other actionsThere is no memory effect, and the charge and discharge depth is greater than 90%
Product parameters of industrial robot battery
Model | Capacity(Ah) | weight(Kg) | Dimension(mm) | Charging Current (A) | Discharge Current (A) |
LPAGV24-30 | 30 | 9 | 390*199*130 | 60A | 30A |
LPAGV24-40-1 | 40 | 17.5 | 315*237*165 | 80A | 20A |
LPAGV24-40-2 | 40 | 17.5 | 527*155*170 | 80A | 20A |
LPAGV24-60-1 | 60 | 25 | 315*248*215 | 120A | 30A |
LPAGV24-60-2 | 60 | 25 | 325*237*187 | 120A | 30A |
LPAGV24-60-3 | 60 | 25 | 433*220*150 | 120A | 30A |
LPAGV24-60-4 | 60 | 25 | 383*200*193 | 120A | 30A |
LPAGV24-80 | 80 | 29 | 356*335*216 | 160A | 40A |
LPAGV24-100 | 100 | 34 | 356*335*216 | 200A | 50A |
LPAGV24-120 | 120 | 41.5 | 400*275*248 | 240A | 60A |
LPAGV24-160 | 160 | 60 | 551*210*433 | 300A | 80A |
LPAGV24-200 | 200 | 65 | 551*210*433 | 200A | 100A |
LPAGV48-20 | 20 | 17.5 | 315*237*165 | 40A | 20A |
LPAGV48-30 | 30 | 21.4 | 380*238*202 | 60A | 30A |
LPAGV48-40-1 | 40 | 32 | 567*241*226 | 80A | 40A |
LPAGV48-40-2 | 40 | 32 | 430*350*240 | 80A | 40A |
LPAGV48-40-3 | 40 | 32 | 356*335*216 | 80A | 40A |
LPAGV48-50 | 50 | 36 | 788*170*170 | 100A | 50A |
LPAGV48-60-1 | 60 | 40 | 567*241*226 | 120A | 30A |
LPAGV48-60-2 | 60 | 40 | 430*350*240 | 120A | 30A |
LPAGV48-80 | 80 | 48 | 614*346*202 | 160A | 40A |
LPAGV48-100 | 100 | 55 | 614*346*202 | 200A | 50A |
LPAGV48-160 | 160 | 86.5 | 606*436*255 | 160A | 160A |
LPAGV48-180 | 180 | 95 | 600*275*517 | 180A | 180A |
LPAGV48-200 | 200 | 130 | 700*555*294 | 200A | 200A |
